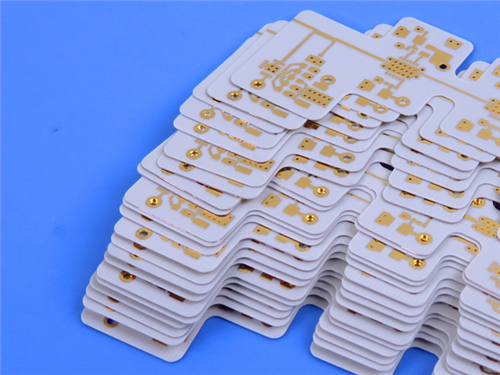

This 2-layer PCB, built with Rogers RO3010 as its base material, is a high-performance electronic component engineered for precision and reliability. Measuring 49mm x 27mm (1 piece), this compact PCB leverages the unique properties of RO3010 to deliver exceptional electrical and mechanical stability, making it ideal for a range of demanding applications.
Rogers RO3010 is a ceramic-filled PTFE composite known for its high dielectric constant and excellent stability. As a cost-effective material with superior mechanical and electrical properties, it simplifies broadband component design and performs reliably across a wide frequency range. Its characteristics also support circuit miniaturization, making it a versatile choice for compact electronic systems.
Construction Details
| Parameter | Specification |
| Layer Count | 2-layer |
| Board Dimensions | 49mm x 27mm = 1PCS |
| Minimum Trace/Space | 4/5 mils, enabling precise routing in compact designs without compromising signal integrity |
| Minimum Hole Size | 0.2mm, accommodating small components for space-efficient layouts |
| Finished Thickness | 0.2mm, ultra-thin design suitable for applications with strict space constraints |
| Outer Cu Weight | 1oz (1.4 mils), ensuring reliable conductivity for various current requirements |
| Via Plating | 20μm thick, enhancing interlayer connection durability against thermal and mechanical stress |
| Surface Finish | ENIG (Electroless Nickel and Immersion Gold), providing superior corrosion resistance and consistent solderability |
| Silkscreen | White on top (clear component identification), none on bottom (simplified design) |
| Solder Mask | None on top or bottom, tailored for specific application needs |
| Electrical Test | 100% tested before shipment (checks for shorts, opens, and impedance) to ensure functionality |
PCB Stack-up
| Layer | Material/Component | Thickness |
| Copper_layer_1 | Copper | 35μm |
| Substrate | Rogers RO3010 | 5mil (0.127mm) |
| Copper_layer_2 | Copper | 35μm |
Artwork: Supplied in Gerber RS-274-X format, the industry standard for seamless manufacturing integration.
Quality Standard: Adheres to IPC-Class-2, ensuring consistent performance for general electronic applications.
Availability: Offered worldwide, supporting global supply chains and project needs.
RO3010 Features
Dielectric Constant: 10.2±0.30 at 10 GHz/23°C, providing stable signal propagation for high-frequency designs.
Dissipation Factor: 0.0022 at 10 GHz/23°C, minimizing energy loss for efficient operation.
Low CTE: 13 ppm/°C (X), 11 ppm/°C (Y), 16 ppm/°C (Z) (-55 to 288°C), ensuring dimensional stability across temperature ranges.
High Td: >500°C, maintaining integrity in extreme heat.
Thermal Conductivity: 0.95 W/mK, facilitating effective heat dissipation.
Moisture Absorption: 0.05%, ensuring reliability in humid environments.
Operating Temperature: -40℃ to +85℃, suitable for harsh conditions.
Benefits of Rogers 3010
Dimensional Stability: CTE matched to copper, reducing thermal stress and enhancing reliability.
Cost-Effective: Economical pricing ideal for volume manufacturing.
Quality Assurance: ISO 9001 certified, guaranteeing consistent production standards.
Design Flexibility: Compatible with multi-layer board designs for expanded application potential.
Typical Applications
-Automotive radar systems
-Global positioning satellite (GPS) antennas
-Cellular telecommunications (power amplifiers, antennas)
-Wireless communication patch antennas
-Direct broadcast satellites
-Cable system datalinks
-Remote meter readers
-Power backplanes
This PCB combines Rogers RO3010’s advanced properties with precise engineering, making it a reliable solution for high-frequency, space-constrained, and performance-critical applications. Its compact size, stable performance, and broad compatibility ensure it meets the demands of modern electronic systems.
